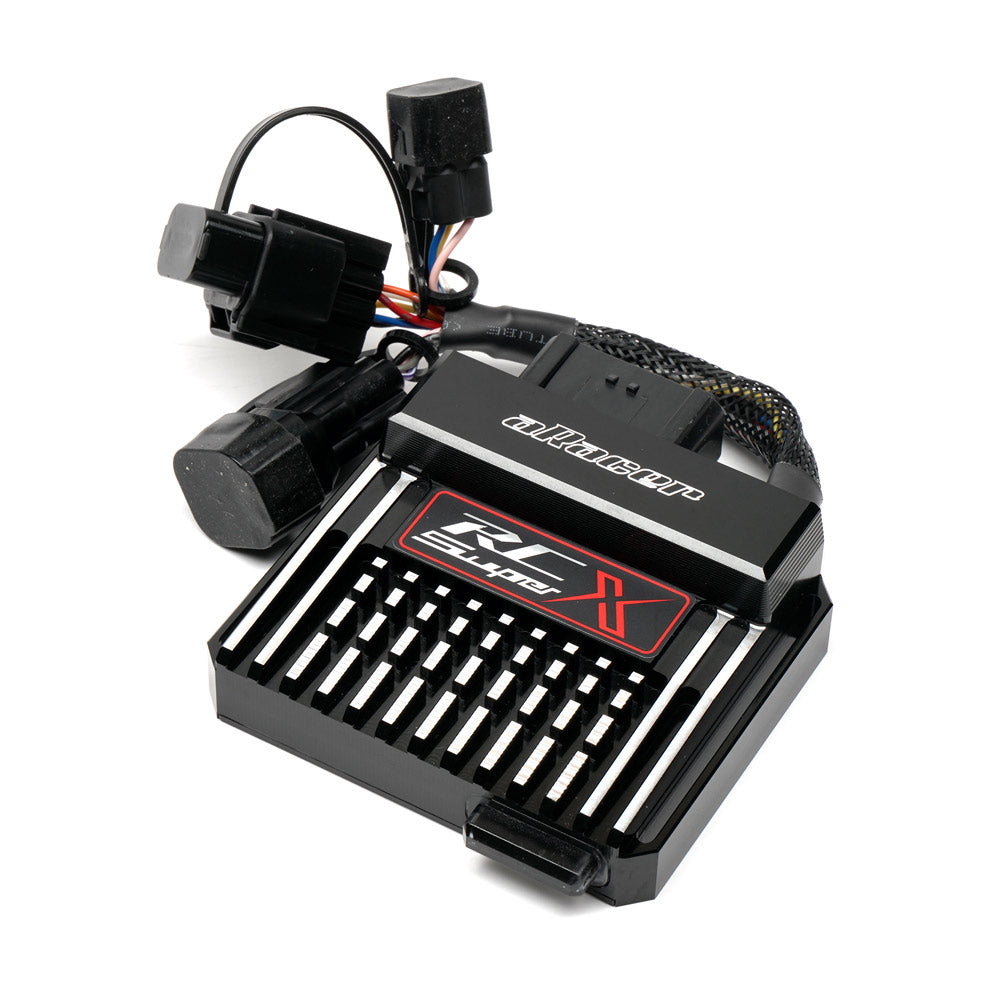

ARacer RC Super X Stage 3 Ultimate Engine Management System ECU will completely replace the OEM ECU on the Honda CBR250/300 Rebel 300 CB300F! This is not a piggyback ECU, the RC Super X completely removes the OEM ECU! This will eliminate all of the issues that would occur with the OEM CBR ECU, giving you full control of how the engine will run without any worries of random changes that typically occurs with a piggyback ECU. Adjustments could be made with a laptop. The RC Super X is 100% plug and play, no wiring needed!
ARacer RC Super X Stage 3 is a Complete engine management system that allows you to make all adjustments via a laptop. Pair this up with the correct fuel injector size and you could easily tune your engine to run.
Tuning could be done on a dyno (highly recommended) or safely on a backroad/street using a wideband o2 gauge and sensor with the autotune function.
Optional DG1 and AF2 combo option is available and recommended to be used with the Super X to monitor A/F ratio.
- New six-core MCU & dual MCU block division is 21% faster
- CFD heat dissipation analysis & Layout design, heat dissipation increased to 58%
- 360-degree WiFi antenna design, signal strong increase to 20%
- CNC shell, anodized treatment & diamond cut heat sink design, heat dissipation increased to 66%
- Fly Recorder built-in memory, capacity increased to 33%
RC2 Super X ECU
- Fuel and Injection phase adjustable
- Ignition timing and dwell time adjustable
- Manifold Air Pressure base for inlet air amount calculation
- Released engine speed limited
- Environment temp and Baro compensation available
- Free MAP download for various vehicle model (Honda, Yamaha, Suzuki, Kawasaki, Kymco, SYM…)
- Increase almost 10% above power after calibration (depend on engine model)
- Easy plugin (remove stock ECU and install Super X ECU without any harness modified)
- Same connector as stock ECU
- Super Super X ECU meet IP67 specs
- Support Auto-Tune with aRacer AF2 wideband sensor module
- Race & ECOMAP real-time switch with iMode
- Launch mode for racing start
- Valet mode for anti-thief or running usage
Optional items are available! Please see related items below!
NOTE : Different countries might have a different ECU. These are for USA models only. If your Aracer ECU looks like the one in the product photo, it may plug into the harness, however the functions might be different. If you need a re-flash to your ECU and you're located in another country outside of the USA, please contact us.
Please note that ECU and ECM units are not returnable or exchangeable. Any issues must be addressed through the manufacturer's warranty.
